Flat roof insulation in the UK costs £30 to £65 per square metre installed, depending on the system and material — and choosing the wrong type is one of the most expensive mistakes a homeowner can make. An uninsulated or poorly insulated flat roof loses up to 25% of a building’s heat, drives energy bills upward, and creates the conditions for condensation, rot, and premature roof failure. This guide explains every flat roof insulation system available in 2026, the correct thickness required under UK building regulations, which material performs best, and exactly how much you should expect to pay.
The Three Types of Flat Roof Insulation: Which System Is Right for You?
Before selecting a material, you must decide which insulation system suits your roof. This is the decision that most homeowners and even some contractors get wrong — choosing the wrong system can cause condensation problems within the roof structure that take years to become visible and cost thousands to remedy.

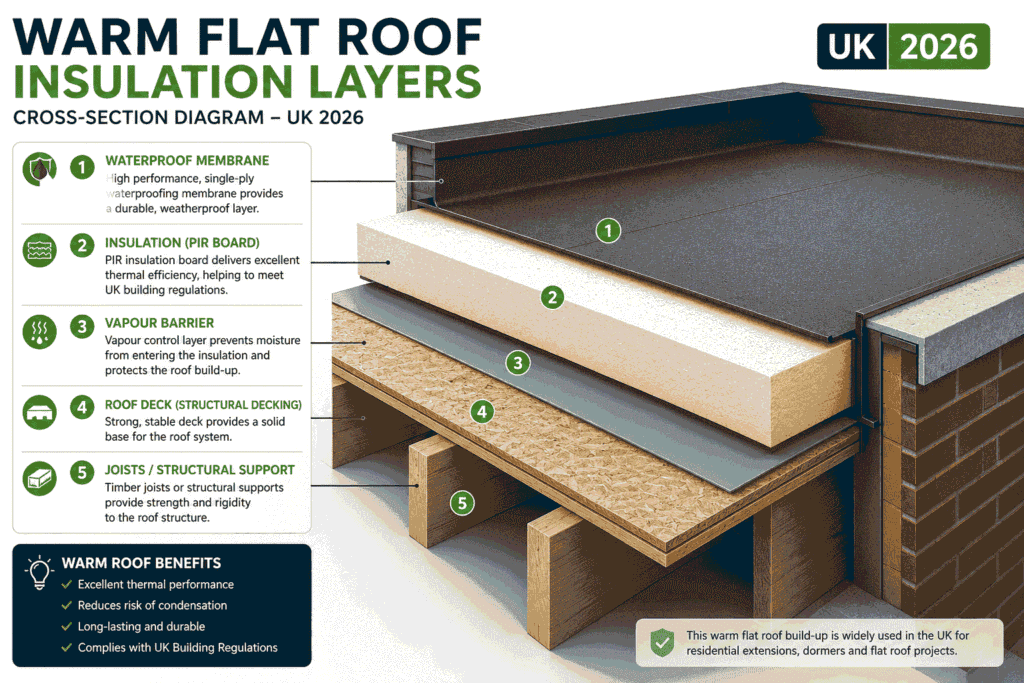

Warm Flat Roof Insulation (Recommended for Most Properties)
A warm roof places the insulation above the structural deck and below the waterproofing membrane. The entire roof structure sits within the warm zone of the building — above the insulation — which eliminates the condensation risk that plagues other systems. There is no ventilation gap required and no vapour barrier complexity.
Warm roof insulation is the system recommended by the NHBC, the Flat Roofing Alliance, and most roofing contractors for any roof that is being newly constructed or fully replaced. It is more material-efficient than a cold roof because the entire insulation thickness contributes directly to the U-value — nothing is wasted in ventilation gaps.
Warm roof insulation thickness required to achieve the UK building regulations target U-value of 0.18 W/m²K:
Material | Required Thickness for 0.18 W/m²K |
PIR (Polyisocyanurate) board | 120mm – 140mm |
XPS (Extruded Polystyrene) board | 150mm – 180mm |
EPS (Expanded Polystyrene) board | 200mm – 250mm |
Mineral wool | 200mm – 220mm |
These figures are for a warm roof system only. Thinner boards — such as 50mm or even 100mm — do not meet the minimum insulation thickness for a warm flat roof under current Part L building regulations for a new or replacement roof.
Cold Flat Roof Insulation (Existing Roofs Only)
A cold roof places insulation between and over the ceiling joists, inside the roof void — rather than on top of the structural deck. The roof void above the insulation remains cold and uninsulated, which means it must be ventilated to prevent moisture accumulation from condensation.
Cold flat roof insulation is lower cost and can be DIY-installed in accessible roof spaces. However, it has a significant structural limitation: the ventilation gap required between the insulation surface and the underside of the deck must be at least 50mm, meaning less of the total void depth is available for insulation. Achieving the 0.18 W/m²K target is harder, and the condensation risk — even with correct ventilation — is meaningfully higher than a warm roof.
Cold flat roof insulation is appropriate for:
- Existing flat roofs where the deck is not being replaced
- Roofs with accessible void space and adequate ventilation provision
- Budget-constrained projects where warm roof conversion is not feasible
Cold roof insulation is not recommended for any new flat roof construction or full replacement under current UK building regulations guidance. Any roof replacement covering more than 25% of the roof area triggers the requirement to upgrade thermal performance to the 0.18 W/m²K target — and a cold roof system makes this significantly harder to achieve in a shallow void.
Inverted Flat Roof Insulation (Premium System)
An inverted roof — sometimes called an upside-down warm roof — places the insulation above the waterproofing membrane, not below it. The membrane is therefore sandwiched between the structural deck and the insulation, with a ballast layer (gravel, paving slabs, or a green roof build-up) on top to hold the insulation boards in place.
The principal advantage of an inverted system is that the waterproofing membrane is protected from UV degradation, thermal stress, and physical damage by the insulation above it. This significantly extends membrane life — up to 40 to 50 years in well-designed inverted systems versus 20 to 25 years for exposed membranes.
Inverted roofs require XPS insulation specifically, because XPS maintains its thermal performance when wet. PIR and mineral wool are not suitable for inverted systems. An uplift factor is also applied to the insulation thickness calculation, typically requiring 10–15% additional thickness compared to an equivalent warm roof.
Flat Roof Insulation Regulations: What UK Building Regulations Require (2026)
UK flat roof insulation is governed by Approved Document L (Conservation of Fuel and Power) under the Building Regulations 2010, updated in 2022. The key requirements are:
Target U-value: The maximum permissible U-value for a flat roof in England is 0.18 W/m²K for new construction and full replacements. This is the measure of how much heat passes through a square metre of the roof per degree of temperature difference — the lower the number, the better the insulation.
The 25% trigger: When more than 25% of the roof covering is replaced, the thermal performance of the entire roof must be upgraded to meet the 0.18 W/m²K target. This means that replacing the waterproofing membrane on a flat roof is not just a weatherproofing job — it legally requires insulation upgrade at the same time if the existing insulation falls below the required standard.
Building control notification: Any flat roof replacement that requires insulation upgrade under Part L must be notified to your local authority’s building control department before work begins. A completion certificate is issued on inspection. Mortgage lenders increasingly request this certificate when properties are sold or remortgaged — always confirm with your contractor that building control compliance is included in their scope.
Vapour control layers: Warm roof systems require a vapour control layer (VCL) between the structural deck and the insulation boards to prevent moisture-laden air from the building interior reaching the cold side of the insulation. This is a mandatory component of any correctly specified warm flat roof and should be detailed in any contractor specification.
Best Insulation Materials for a Flat Roof: Performance Compared
PIR (Polyisocyanurate) Boards — Best Overall
PIR boards are the most widely used material in warm flat roof insulation in the UK. Their thermal conductivity (lambda value) of 0.022–0.028 W/mK means they achieve the required U-value at a thinner profile than any other rigid board material — typically 120mm to 140mm for a warm roof. This matters on flat roofs where the parapet wall height and rainwater outlet positions limit how much build-up is practical.
PIR boards are factory-faced with aluminium foil on both sides, which acts as the vapour control layer when correctly taped at joints — simplifying installation and reducing the risk of VCL discontinuities. They are fire-classified to Euroclass E or better and compatible with all standard flat roofing membranes (GRP, EPDM, felt, liquid applied).
Cost: £40 to £55 per m² installed as part of a complete warm roof system.
XPS (Extruded Polystyrene) Boards — Best for Inverted Roofs
XPS maintains its thermal performance when wet, making it the only board material suitable for inverted roof systems. Its lambda value of 0.033–0.036 W/mK is lower than PIR, requiring greater thickness to achieve the same U-value. XPS boards are rigid, highly compressive, and resistant to ground moisture, which is why they are also used in below-ground insulation applications.
Cost: £45 to £60 per m² installed.
EPS (Expanded Polystyrene) Boards — Best for Budget Cold Roofs
EPS is the most cost-effective rigid board insulation material, with a lambda value of 0.036–0.040 W/mK. It requires significantly greater thickness than PIR to achieve the same U-value (200mm+ for 0.18 W/m²K), which limits its use to roof voids with adequate depth. EPS performs well for cold roof installations in accessible roof spaces where depth is available.
Cost: £30 to £40 per m² installed.
Mineral Wool — Best for Acoustic Performance
Mineral wool (rock wool or glass wool) is the only flat roof insulation material that provides meaningful acoustic insulation alongside thermal performance. For flat-roofed extensions below bedrooms, or roofs on buildings with significant noise exposure, mineral wool’s acoustic absorption properties are a genuine advantage. Its thermal conductivity of 0.035–0.040 W/mK requires 200mm+ thickness for warm roof application, making it practical only in inverted systems with sufficient parapet height.
Cost: £35 to £50 per m² installed.

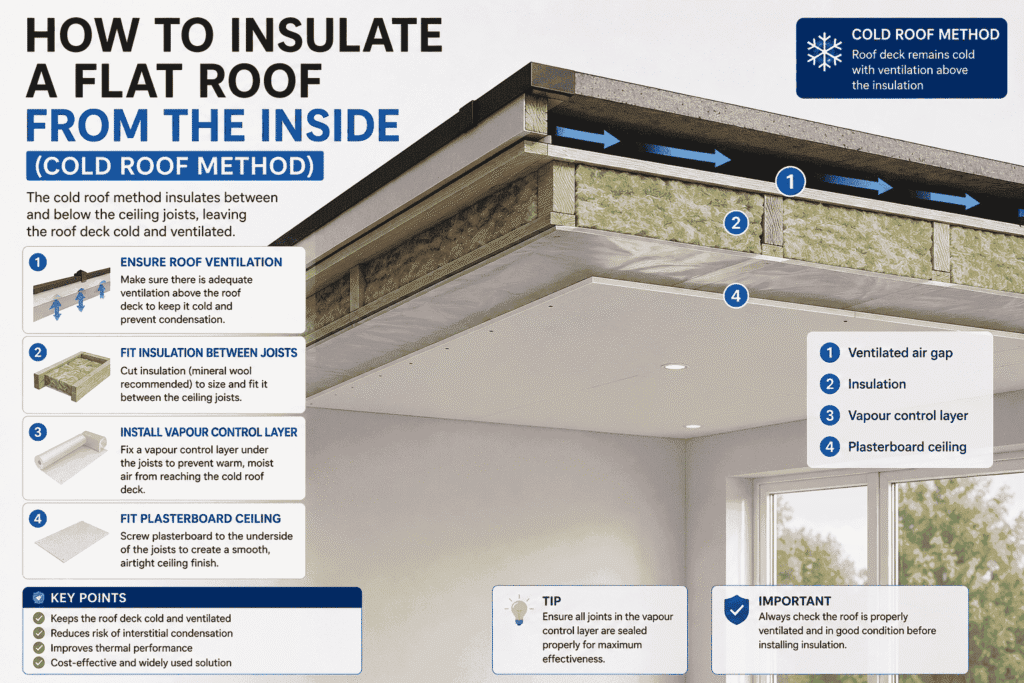

How to Insulate a Flat Roof from the Inside (Cold Roof Method)
Internal flat roof insulation — insulating from the inside through an accessible ceiling void — is the only option when the roof surface cannot be disturbed. The correct process for a cold roof installed internally is:
Step 1 — Inspect the roof void. Before any insulation is installed, inspect for existing moisture damage, rot, or mould. If the deck shows signs of water ingress, address the source before insulating — trapping moisture inside an insulated void accelerates structural decay.
Step 2 — Ensure ventilation is adequate. A cold roof void must be cross-ventilated at eaves level on at least two opposing sides. The ventilation opening should provide at least 1/150 of the ceiling area. Without adequate ventilation, condensation will form on the cold underside of the deck regardless of how well the insulation is fitted.
Step 3 — Install a vapour control layer on the warm side. Fix a vapour control layer to the underside of the joists before insulation is installed. This must be on the warm (interior) side of the insulation — not the cold side — to prevent moisture-laden warm air from reaching the cold deck.
Step 4 — Cut and fit insulation between joists. Cut PIR or EPS boards to fit snugly between the joists without gaps. Any gaps or thermal bridges at joist positions reduce overall U-value performance significantly. Friction-fit boards and seal all perimeter edges with appropriate tape.
Step 5 — Maintain the ventilation gap. A minimum 50mm clear air gap must be maintained between the top surface of the insulation and the underside of the deck. Do not compress insulation to squeeze in extra thickness — this eliminates the ventilation gap and creates condensation risk.
Step 6 — Board over with plasterboard. Fix 12.5mm plasterboard to the underside of the joists to complete the ceiling. Tape and skim to finish.
Internal cold roof insulation is a complex process
where errors have long-term structural consequences. Unless the roof void is straightforward and accessible, professional installation is strongly recommended.
Flat Roof Insulation Cost: What to Budget in 2026
System and Material | Cost per m² Installed |
Warm roof — PIR board | £40 – £55 |
Warm roof — XPS board | £45 – £60 |
Warm roof — EPS board | £30 – £40 |
Warm roof — Mineral wool | £35 – £50 |
Inverted roof — XPS board | £55 – £75 |
Cold roof — PIR between joists | £25 – £40 |
Spray foam (not recommended) | £55 – £80 |
Real-world total costs for a complete flat roof replacement with insulation upgrade:
- Single garage flat roof (18 m²): £700 – £1,500
- Flat-roofed extension (25–35 m²): £1,500 – £3,500
- Two-bed bungalow flat roof (50–70 m²): £3,500 – £7,000
These figures include stripping the existing roof covering, installing the new insulation system, fitting a new waterproofing membrane (GRP or EPDM), and making good at edges and upstands.
Important note on spray foam: Spray foam insulation applied directly to roof timbers has become a significant problem for UK homeowners attempting to sell or remortgage. Mortgage lenders including Halifax, Nationwide, and most high street banks now decline or restrict lending on properties with spray foam in the roof structure because it is difficult to inspect timbers, may invalidate the roof covering warranty, and can be costly to remove. Avoid spray foam insulation on any roof structure unless you have taken specific advice on the implications for your property’s mortgageability.
Does Flat Roof Insulation Add Value to Your Home?
A properly insulated flat roof improves your property’s Energy Performance
Certificate (EPC) rating, which has become increasingly significant for both mortgage applications and property valuations in 2026. Properties with EPC ratings below D face growing restrictions on rental lettuce and buyer resistance on sale. Upgrading flat roof insulation from zero or minimal insulation to the Part L standard of 0.18 W/m²K can improve an EPC by one to two bands — a material uplift in assessed value.
Energy savings from correct flat roof insulation typically run £150 to £280 per year for an average UK home, depending on heating fuel type and roof area. PIR warm roof insulation at the correct thickness pays back its installation premium over a cold roof system within six to ten years in energy savings alone.
Before commissioning any flat roof insulation work, use our free roof replacement cost calculator to understand the full cost of your project including insulation upgrade — so you can compare contractor quotes with confidence.
Article reviewed June 2026. All U-value targets and building regulations references reflect Approved Document L (England) as current at this date. Scottish and Welsh building regulations have equivalent but separately published standards — consult your local authority for guidance specific to your location.
